How to select right heating element for Dražice water heater

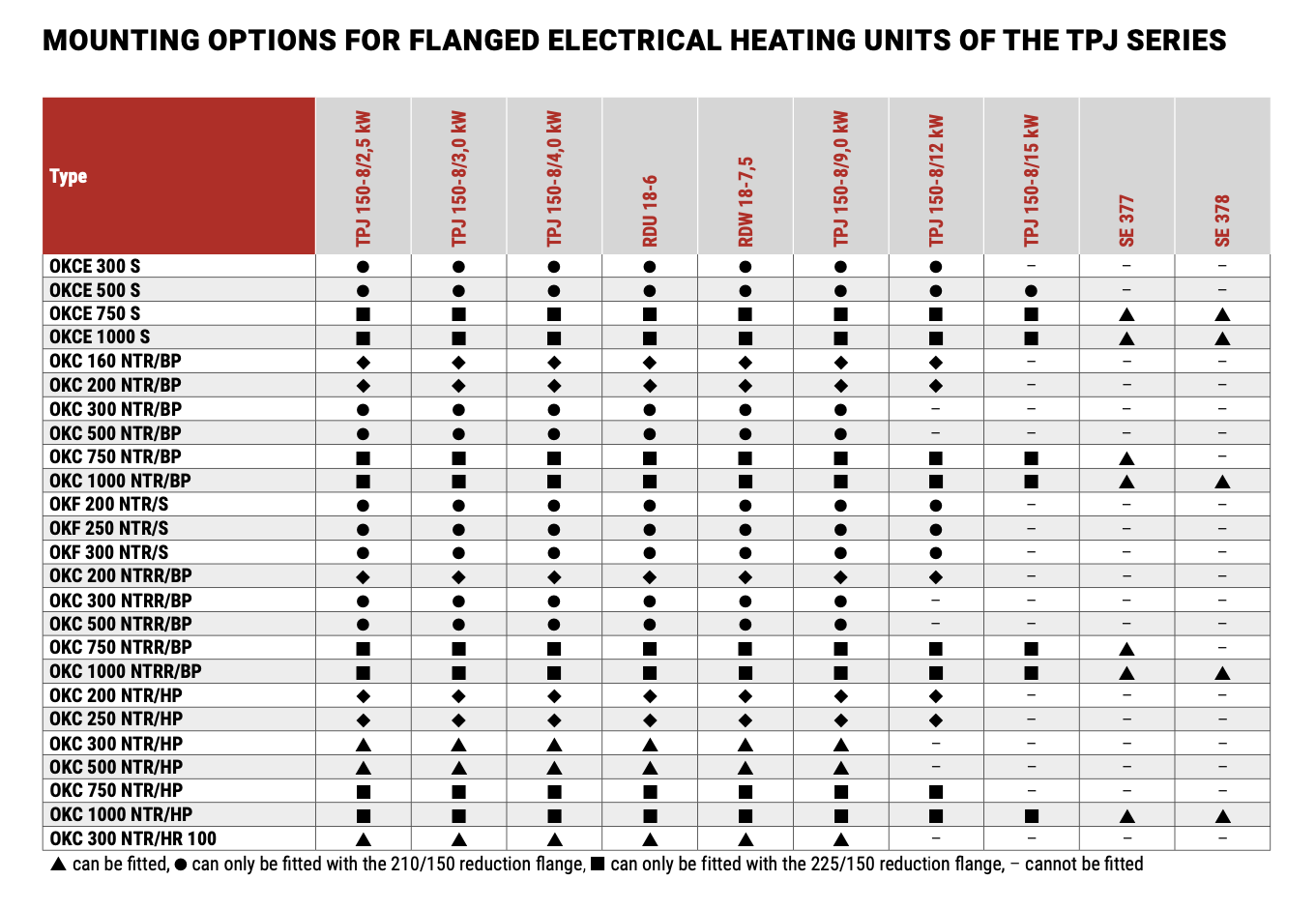

The assembly option of built-in electric units with flanges ranges TPJ, R, SE
▲ Can be fitted
■ Can only be fitted with the 225/150 reduction flange
● Can only be fitted with the 210/150 reduction flange
- Cannot be fitted

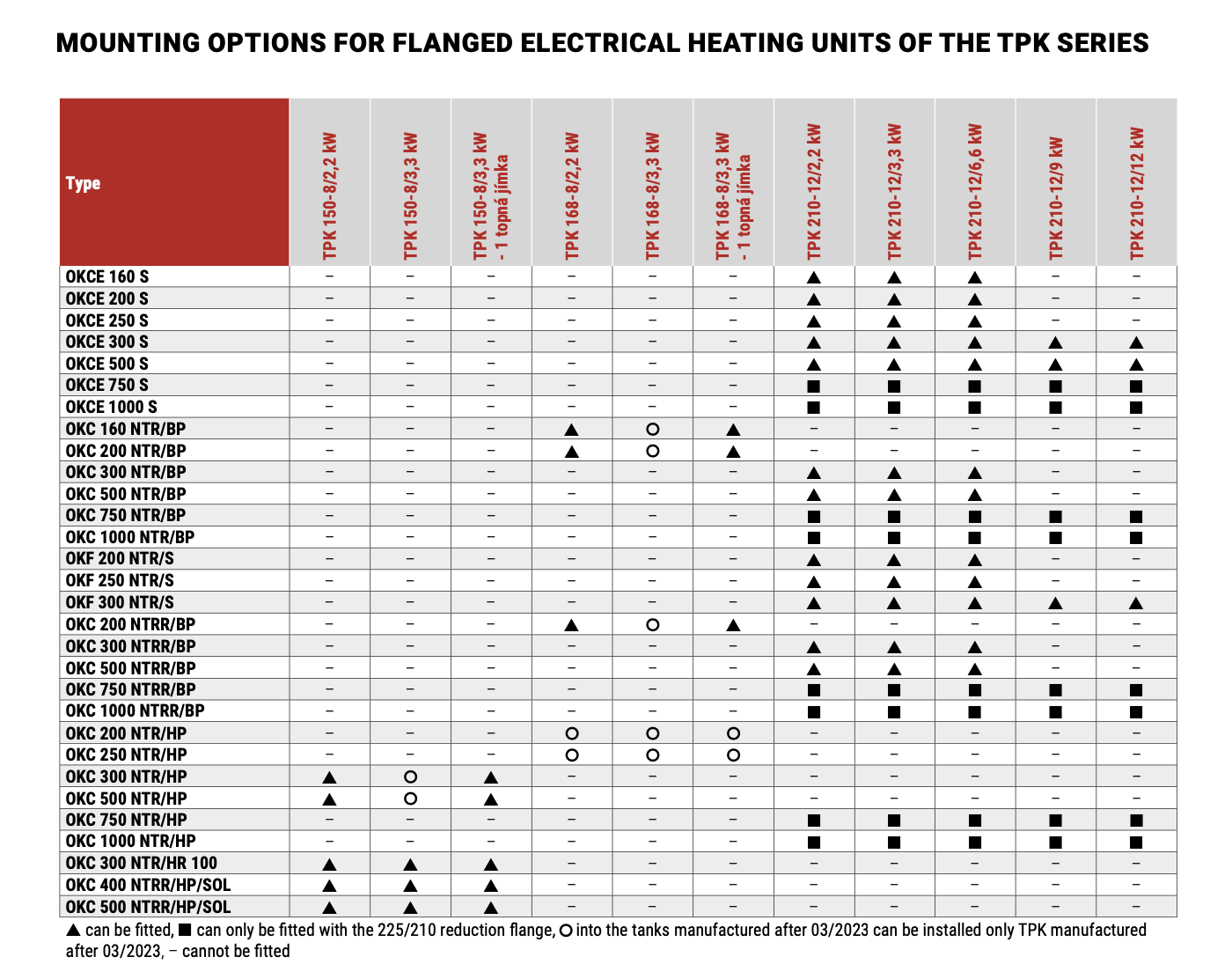

Assembly option of individual TPK units
▲ Can be fitted
■ Can only be fitted with the 225/210 reduction flange
- Cannot be fitted

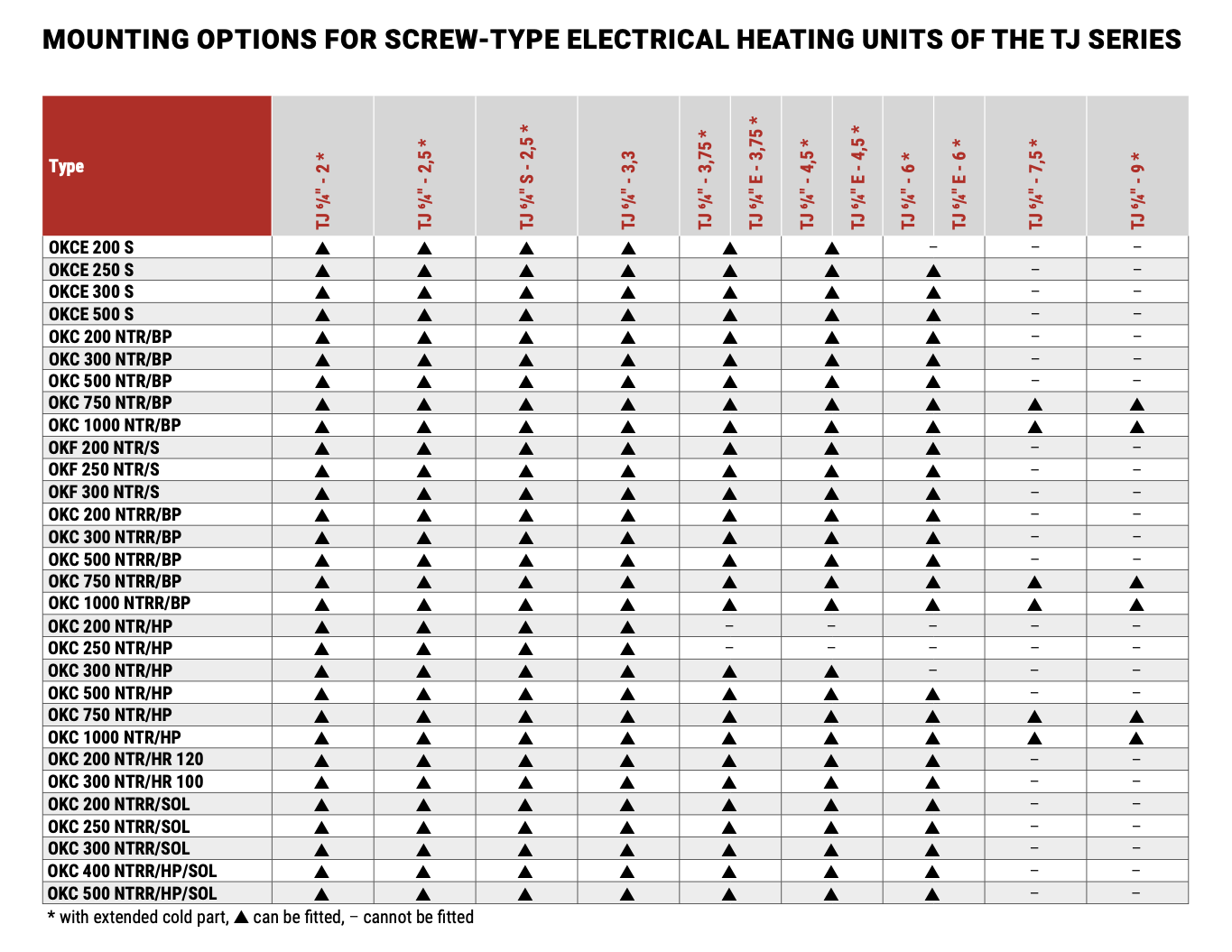

Assembly option of individual TJ 6/4" units
* TJ 6/4" with extended cold part
▲ Can be fitted
- Cannot be fitted
