- 1 MPa working pressure in the storage tank and exchanger
- With one large exchanger to connect a heating source (heat pump, low temperature source)

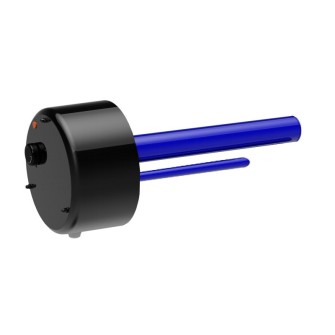

- Possibility to install the TJ 6/4" heating unit
- Possible installation of heating R, SE flange unit
- At the bottom of the heater there is a review flange hole for cleaning the inside of the storage tank
- Preparation of hot water all year round with heating water from a heat pump
Capacity: 208 l
Height: 1355 mm
Diameter: 584 mm
Max. Weight without water: 102 kg
Max. Operating pressure in the tank: 10 bar
Max. Operating overpressure in the exchanger: 10 bar
Max. Heating water temperature: 110 °C
Max. Hot water temperature: 80 °C
Exchanger heat surface: 2.0 m2
Exchanger volum: 13.3 l
Energy efficiency class: C
Static loss: 82 W
